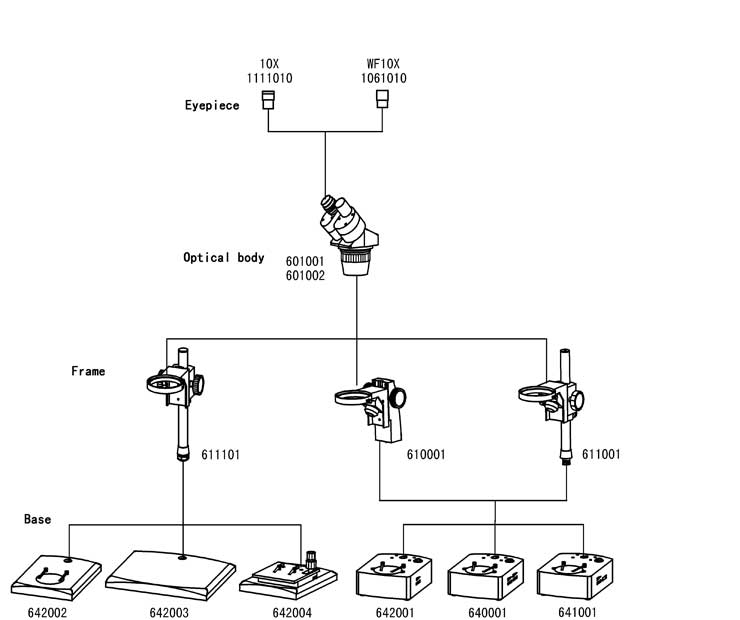

System diagram
-

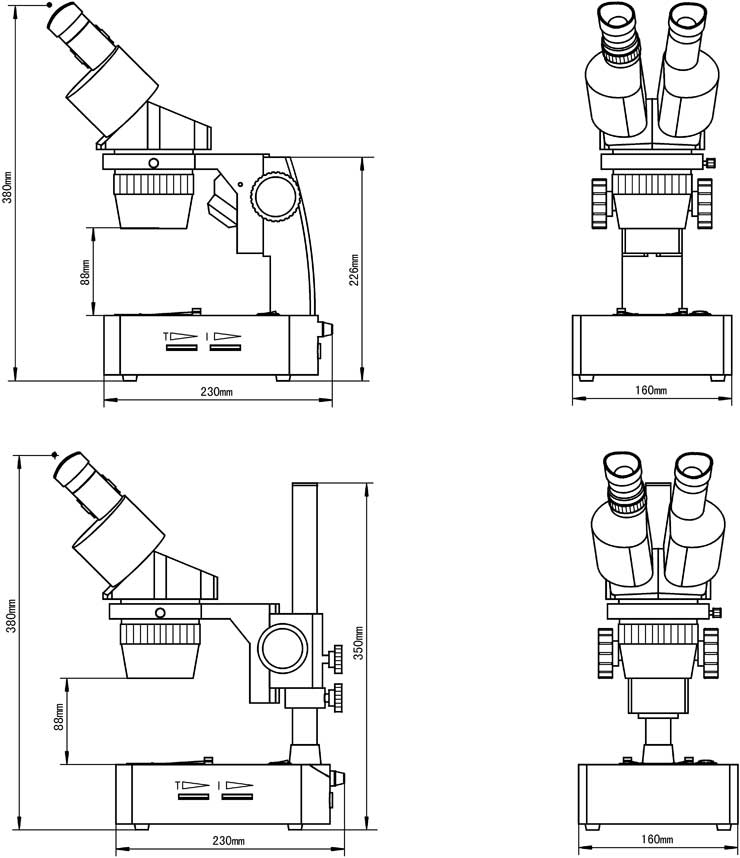

Dimension
XTC series stereo microscopes are a kind of positive image microscope; they have long working distance, clear and smooth image quality,
wide field, convenience operation etc. They can be used for culture and education, scientific research, farming and forestry, electronics and
precision machine industries widely.
Features
- Eyepiece field is wide and clear.
- Equipped with two pairs of objectives
- Optical tube, 45° inclination. can be rotated 360°, interpupillary distance and the left eyepiece tube diopter can be adjusted,interpupillary distance adjustable range from 55mm~75mm.
Product configuration and main parameter
XTC-2 Series
 XTC-2A |
XTC-2AI |
 XTC-2B |
XTC-2BI |
|
Model
Specification |
XTC-2A |
XTC-2AI |
XTC-2B |
XTC-2BI |
|
Eyepiece |
WF10X(¦µ20mm) |
|
Objective |
1X,3X |
2X,4X |
|
Total magnification |
10X,30X |
20X,40X |
|
Visual field |
¦µ20~¦µ6.7 |
¦µ10~¦µ5 |
|
Working distance |
88mm |
|
Vertical effective movement |
88mm<=h<265mm |
88mm<=h<130mm |
|
Base size |
215X160X60mm |
|
Illumination model |
Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness |
XTC-3 Series
|
XTC-3A |
XTC-3AI |
XTC-3B |
XTC-3BI |
|
Model
Specification |
XTC-3A |
XTC-3AI |
XTC-3B |
XTC-3BI |
|
Eyepiece |
WF10X(¦µ20mm) |
|
Objective |
1X,3X |
2X,4X |
|
Total magnification |
10X,30X |
20X,40X |
|
Visual field |
¦µ20~¦µ6.7 |
¦µ10~¦µ5 |
|
Working distance |
88mm |
|
Vertical effective movement |
88mm<=h<265mm |
88mm<=h<130mm |
|
Base size |
215X160X60mm |
|
Illumination model |
Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness
Transmitted light source:12V10W halogen lamp and adjustable brightness |
Optional accessories
|
Name |
Sort/Technique parameter |
NO. |
|
Eyepiece |
Divisional wide field eyepiece 10X(¦µ20mm) 0.1mm/Div |
1111010 |
|
